Picatinny Rail for Manners MCS-LRT Stock

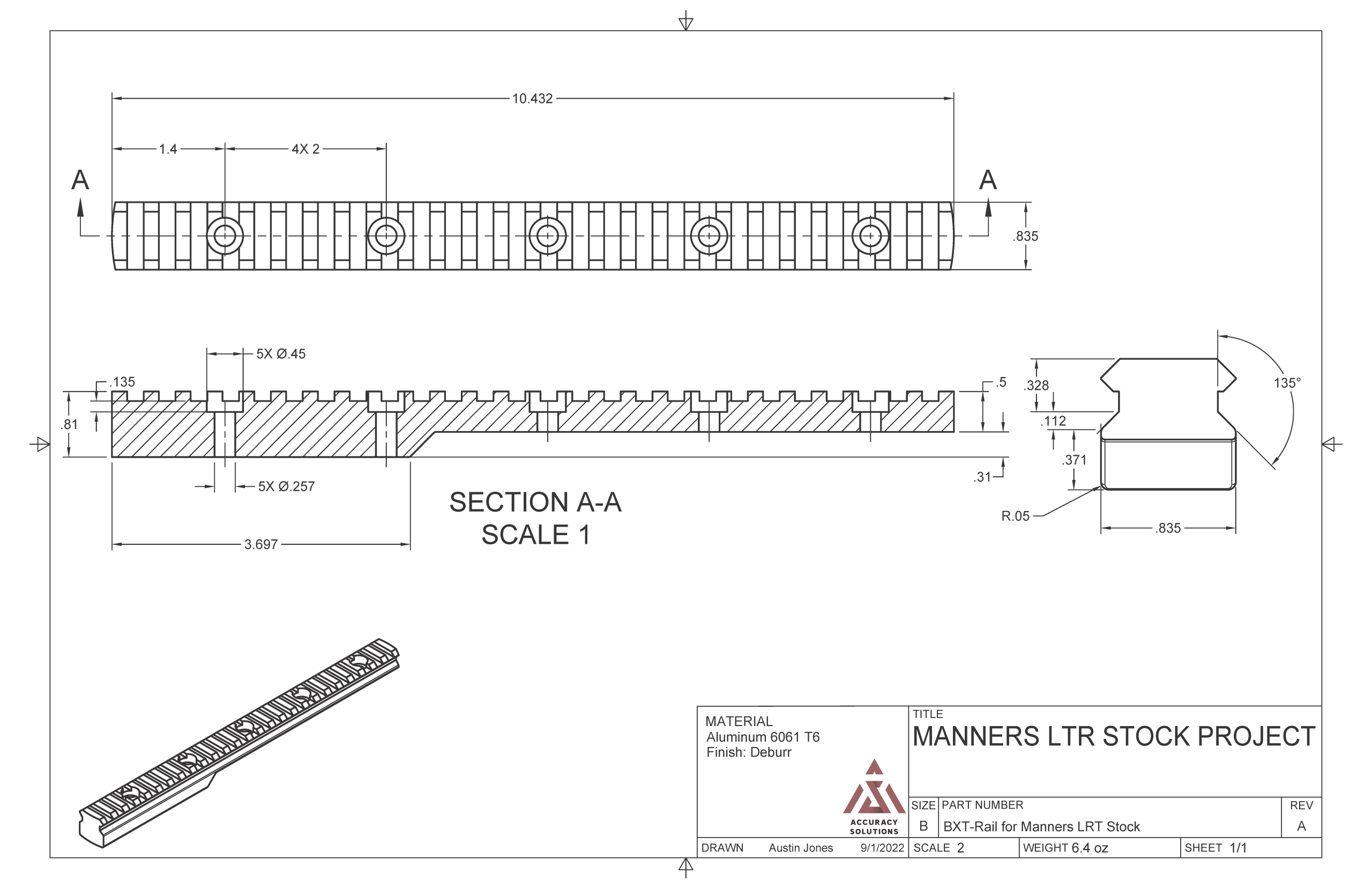

MANNERS LRT 2.0 STOCK Picatinny Rail Drawing
Manners LRT Stock Picatinny rail side view
Manners LRT 2.0 Stock Picatinny rail top view
Picatinny rail for the Manners Composite Stock MCS-LRT 2.0 model. It is 10.432 inches/265mm long. It has twenty-four (24) grooves and five counter-bored holes sized to take 1/4-20 Button Head Hex screws. Made from billet Aluminum 6061 T6 and hard anodized.

BipodeXt Rail for Manners Composite LRT 2.0 Stock

$69.00

In stock

UPC N/A SKU: BXT-PICA-MANNERS-LRT Categories: ,

This is a strong rail. It's back is .5 inch/12.7mm thick. It has a .31 inch/7.9mm step in one end, bringing the total thickness of that end of the rail to .810 inch/20.6 mm. The 3.697 inches/93.9 mm long step follows the contour* of the Manners LRT stock.

Look through the pictures to find and see a technical drawing of this rail.
