Picatinny Rail for BipodeXt Front Plugs

Picatinny rail for BipodeXt Front Plugs. Its purpose is to facilitate the mounting of bipods that have a large mounting requirement area, such as Valdada’s Anvil. It has a total of five (5) holes sized to take 10-32 Flat Head hex screws.

Works on many BipodeXt models. For more information click on MORE DETAILS below.



$49.00

UPC N/A SKUBXT-PICA-RAIL-17S-QUEEN Categories,
Close
Product Specs
Material

Aluminum 6061 T6
Length

6.934 inches/176 mm
Thickness

.5 inch/12.7 mm
Color

Black
Surface Finish

Type III Class 2 MIL-A 8625 Anodization (Hard Anodized)

This rail is 6.934 inches/176 mm long, .5 inch/12.7 mm thick. It has 17 Slots. It has a total of five (5) holes sized to take 10-32 Flat Head hex screws. The holes are countersunk on both sides of the rail to permit attachment from either its top or bottom.

The five holes are distributed in two hole patterns, a two-hole pattern on one end and a three-hole pattern on the other. Let’s call these patterns A and B :

PATTERN A

  • Two holes spaced at 1.87 inches/47.5 mm from center to center. This pattern permits mounting to our Front Plugs of the following Gen1 models:
    • ARC II
    • ARCIII
    • TAC II
    • TAC III

PATTERN B

  • Three holes spaced at .788 inch/20 mm from center to center. This pattern permits mounting to our Front Plugs of the following models:
    • ARC II (Gen2)
    • ARCIII (Gen2)
    • TAC II (Gen2)
    • TAC III (Gen2)
    • MSRs
    • PRSs
    • ELR Max
    • ELR Max DUAL

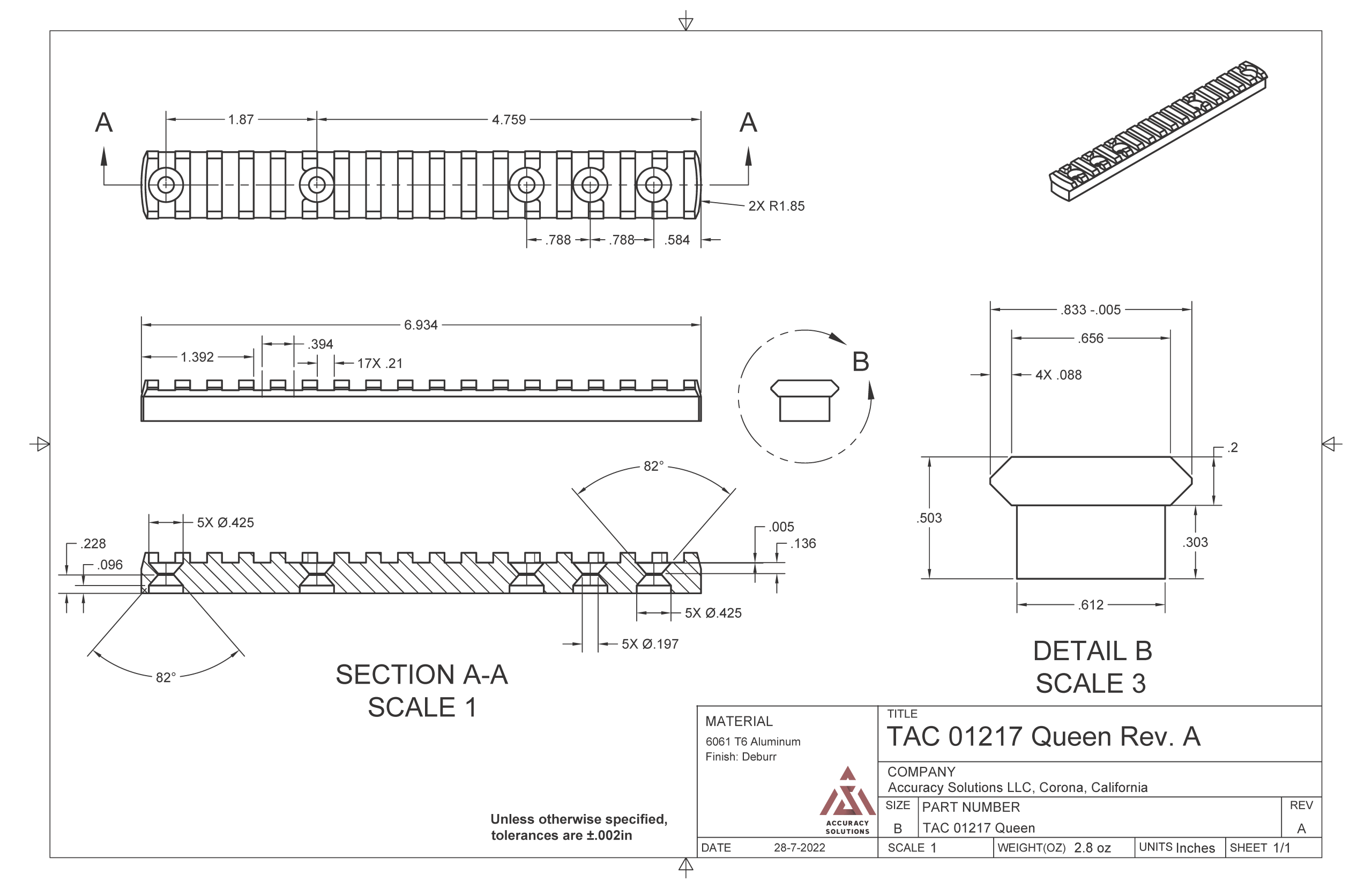

Look through the pictures to see a technical drawing of this rail.
